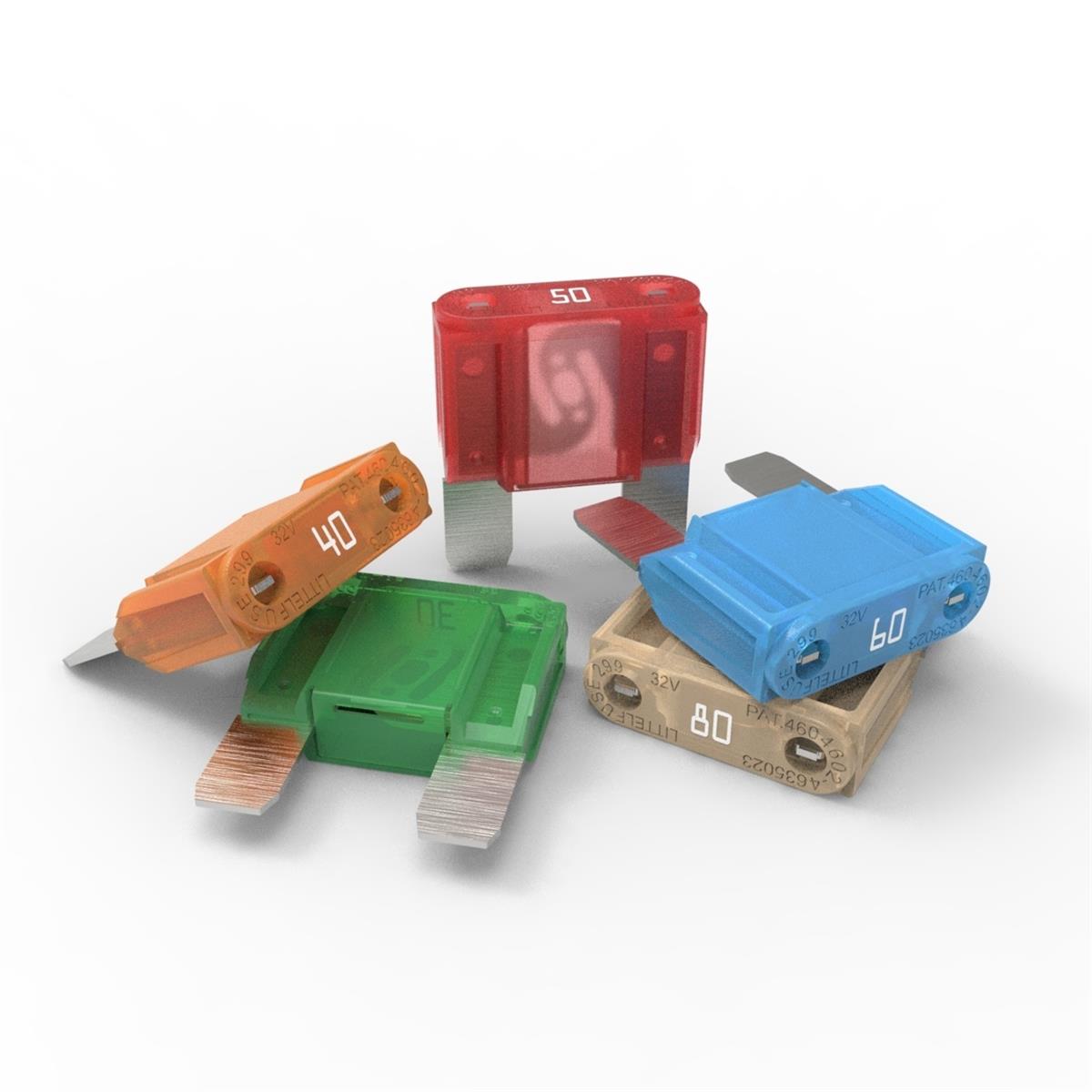

Blade fuse - MAXI blade fuse

Available with ampere ratings of 20 A to 80 A
Interrupting ratings of 1 kA at 32 V dc
Operate at 125 °C with terminals reaching 150 °C at contact points
Silver-plated zinc alloy terminals
PA66 housings with UL flammability ratings of V-2
Net weight 5.7 g ±5 % per fuse
Comply with SAE J1888, SAE 2576, and ISO 8820-3:2002(E)
Certified lead-free and RoHS compliant
Product Code: LBK-BladeFUSE
Brand: MAXI
Availability: In Stock

This allows the automotive blade fuses to deliver predictable time-delayed/SLO-BLO® performance and low heat dissipation. MAXI fuses often replace fusible wires or fusible links that protect high-current segments of the wiring harness.
